图形符号/Picture symbol

特点

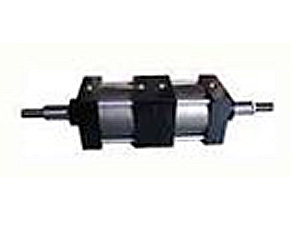

本厂品是以两台QBG||系列相同缸径的对接组合而成的双活塞系列气缸，两活塞行程可以相同，也可不同。活塞运动方向相反。将一端活塞杆固定，可作为多为气缸，用途多样化。

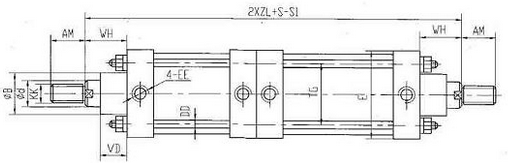

适于前法兰式（MF1）和脚架（MS1）安装形式。

安装件尺寸与QGB||系列气缸相同。

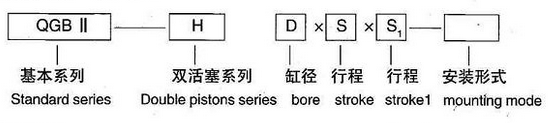

型号说明/Type explanation

Features

This product is composed of two cylinders that have the same bore diameter. The stroke can be the same or not.The piston moves contrarily,if one points of the pistons rod is fixed,it can be used as multidigit cylinders and with divers use.

The form of mount is suitable for MF and MS1.The size of the mount is the same as QGB||

实例/Example

缸径?80mm，行程S为200mm，S1为300mm脚架式的双活塞气缸QGB||-H80×200×300-MS1 Clevis jointing of the double pistons cylinder { QGB||-H80×200×300-MS1}，its bore is 80mm.its stroke is 200mm and its stroke1 is 300mm.
